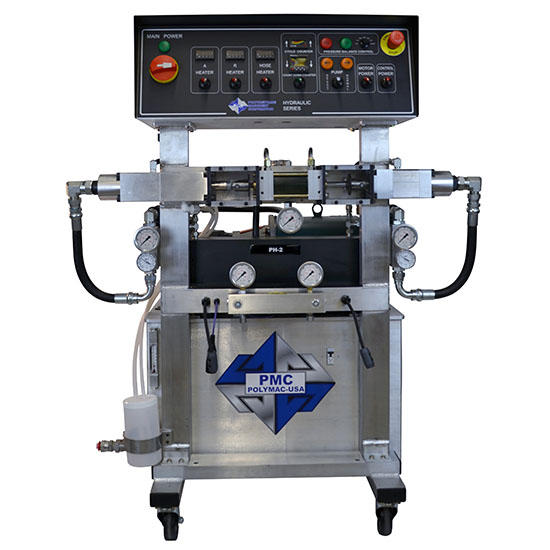

PH-2 Hydraulic Proportioner (Foam)

2000 psi (138 bar) hydraulic proportioner. Ideal for residential foam insulation applications.

pmc-logo

The PH-2 Proportioner is a hydraulic proportioner ideal for residential foam insulation applications.

Sizes & Specifications

Output: 28 lbs/min (12.70 kg/min)
Max Working Pressure: 2000 psi (138 bar)
Max Hose Length: 210 ft (64 m) w/70 Volt Transformer
310 ft (94.5 m) w/ 90 Volt Transformer
410 ft (121.9 m) w 120 Volt Transformer
Heater Wattage: 7,500 watts Total (Single Heater)
9,000 watts Total (Single Heater)
10,500 watts Total (Single Heater)
Hose Heating Power: 70 Volt, 90 Volt or 120 Volt
Max Fluid Temperature: 190 F (87.7 C)
Weight (w/o Hydraulic Fluid): 415 lbs (188 kg)
Electrical @ 7,500 KW Heater: 40 amps @ 3x230V
61 amps @ 1x230V
40 amps @ 3x380V
Electrical @ 9,000 KW Heater: 46 amps @ 3x230V
67 amps @ 1x230V
46 amps @ 3x380V
Electrical @ 10,500 KW Heater: 51 amps @ 3x230V
72 amps @ 1x230V
51 amps @ 3x380V
