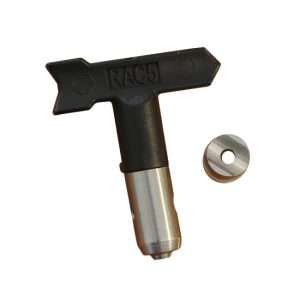

TriTech’s series of Contractor’s Airless Spray Tips include 122 different fan pattern/ orifice size combinations, enabling the right selection for the chosen coating.
Advantages
- Patented seal alignment system for quick and accurate installation
- Mega-hard tungsten carbide for long duty life

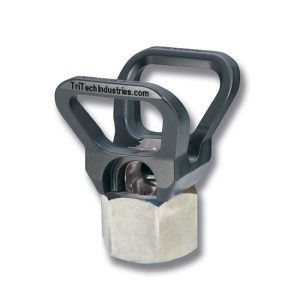

- Hand-tight guard with large knurls for a sure grip
- Tip size tag for quick and accurate size identification
Tip ring feature allows you to store tips on a belt clip or a hook
5000 psi (245 bar)
Tip sizes
|
Fan Width (inches) |
||||||||||
| GPM | 2-4 | 4-6 | 6-8 | 8-10 | 10-12 | 12-14 | 14-16 | 16-18 | 18-20 | LPM |
| 0.05 | 107 | 207 | 307 | 407 | .020 | |||||
| 0.09 | 109 | 209 | 309 | 409 | 509 | 609 | 0.33 | |||
| 0.12 | 111 | 200 | 311 | 411 | 511 | 611 | 0.49 | |||
| 0.18 | 113 | 213 | 313 | 413 | 513 | 613 | 713 | 813 | 0.69 | |
| 0.24 | 115 | 215 | 315 | 415 | 515 | 615 | 715 | 815 | 0.91 | |
| 0.31 | 117 | 217 | 317 | 417 | 517 | 617 | 717 | 817 | 917 | 1.17 |
| 0.38 | 219 | 319 | 419 | 519 | 619 | 719 | 819 | 919 | 1.47 | |
| 0.47 | 221 | 321 | 421 | 521 | 621 | 721 | 821 | 921 | 1.79 | |
| 0.57 | 223 | 323 | 423 | 523 | 623 | 723 | 823 | 923 | 2.15 | |
| 0.67 | 225 | 325 | 425 | 525 | 625 | 725 | 825 | 925 | 2.54 | |
| 0.74 | 327 | 427 | 527 | 627 | 727 | 827 | 927 | 2.96 | ||
| 0.90 | 329 | 429 | 529 | 629 | 729 | 829 | 929 | 3.42 | ||
| 1.03 | 331 | 431 | 531 | 631 | 731 | 831 | 931 | 3.90 | ||
| 1.17 | 333 | 433 | 533 | 633 | 733 | 833 | 933 | 4.42 | ||
| 1.31 | 335 | 435 | 535 | 635 | 735 | 835 | 935 | 4.98 | ||
| 1.47 | 337 | 437 | 537 | 637 | 737 | 837 | 937 | 5.56 | ||
| 1.63 | 339 | 439 | 539 | 639 | 739 | 839 | 939 | 6.18 | ||
| 5-10 | 10-15 | 15-20 | 20-25.5 | 25.5-30.5 | 30.5-35.5 | 35.5-40.5 | 40.5-46 | 46-51 | ||
|
Fan Width (cm) |
||||||||||
