DeFelsko PosiTest Oven Temperature Logger

Measures and records oven temperature profiles.

Download PosiTest OTL Brochure



PosiTestOTL-Blk-Yellow

Measures and records oven temperature profiles

  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches

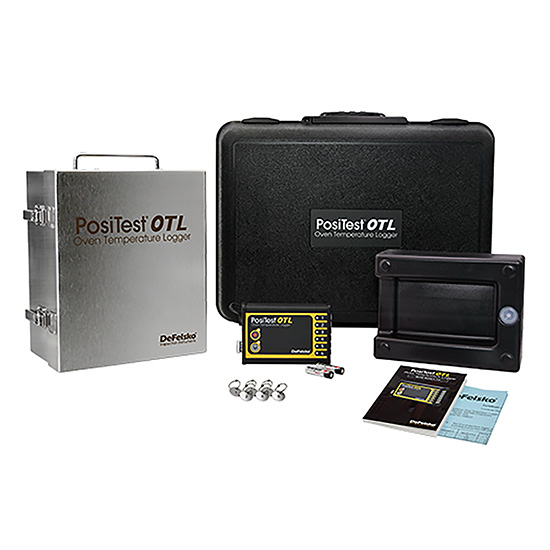

  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • 6 K-type thermocouple ports (channels)
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • Wide variety of probes available with 1.8, 3.6, or 6 m (6′, 12′, or 20′) stainless steel braided cables (sold separately)

Simple

  • Simple, easy-to-use interface
  • 6 K-type thermocouple ports (channels)
  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
  • Records measurements every 2 seconds for up to 22 hours of recording time
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • Bright LEDs indicate logger status at a glance
  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • Certificate of calibration showing traceability to NIST included

Software

PosiSoft Desktop

 FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data.

Add batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches. Includes a customizable, templated PDF Report Generator. No internet connection required.

  1. Customizable PDF Report Generator
  2. Graph Readings for up to 6 channels and compare to stored reference profiles
  3. Store optimal cure reference profiles to compare measurement results
  4. Select one or more reference channels to plot alongside measurement data
  5. Start At Temperature sets the time to 00:00 when the selected channel reaches the threshold temperature, making it easier to compare logged batch results with reference data
  6. Use cursor to hover and identify individual channels (traces)
  7. Rename channels
  8. Add up to 3 Threshold Temperatures to calculate Time above Temperature
  9. Add an image to identify probe placement
  10. Add imagery and notes to any report
