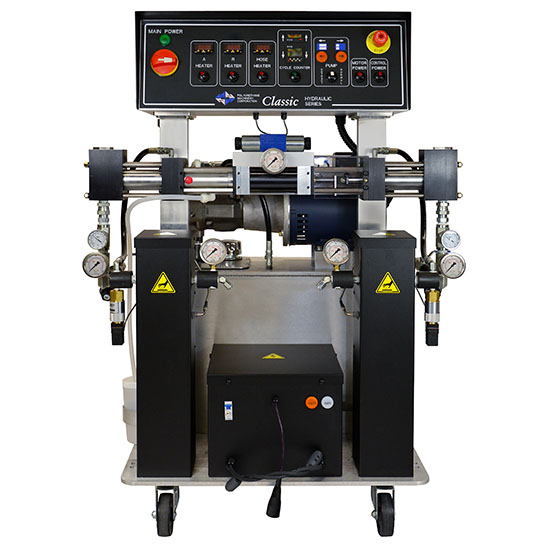

The PH-40 Proportioner is a hydraulic proportioner ideal for high output roofing applications.
Sizes & Specifications
| Output: | 40 lbs/min (18.14 kg/min) |
| Max Working Pressure: | 2000 psi (138 bar) |
| Max Hose Length: | 410 ft (121.9 m) |
| Heater Wattage: | 15,000 watts (Total) Dual Heaters 18,000 watts (Total) Dual Heaters 21,000 watts (Total) Dual Heaters |
| Hose Heating Power: | 120 Volt |
| Max Fluid Temperature: | 190 F (87.7 C) |
| Weight (w/o Hydraulic Fluid): | 555 lbs (251.7 kg) |
| Electrical @ 15,000 KW Heaters: | 75 amps @ 3x230V 130 amps @ 1x230V 75 amps @ 3x380V |
| Electrical @ 18,000 KW Heaters: | 89 amps @ 3x230V 89 amps @ 3x230V |
| Electrical @ 21,000 KW Heaters: | 103 amps @ 3x230V |
