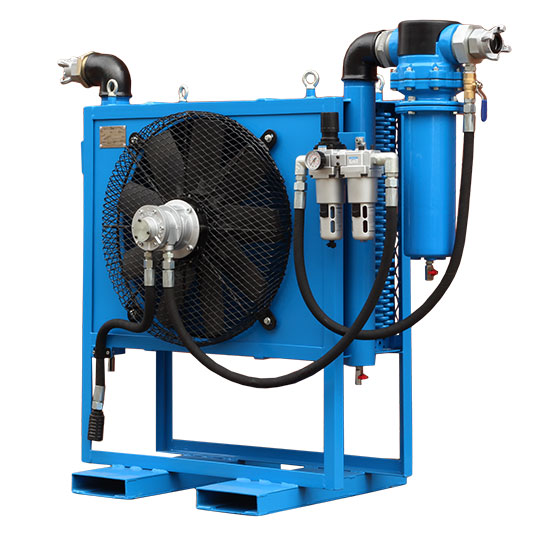

After coolers are designed to cool hot compressed air while removing condensation. This helps prevent moisture from building up in your compressor’s pipe system.
Specifications
Max. Flow Rate Air | 800 CFM / 22400 LPM |
Cooling Fins | Aluminium & Copper |
1034 Design Pressure | |
Cooling Fan Motor | 3 KW |
Pneumatically Driven | |
Up to 3000 RPM | |
Max. Pressure: 7 Bar | |
Air Consumption: 30 - 80 CFM / 840 - 2240 LPM | |
Water Trap | 3" Ports |
Manual Drain | |
Filter Regulator Unit | 3/4" |
Manual Drain | |
Dimensions | Height: 1350 mm |
Length: 1600 mm | |
Width: 620 mm | |
Weight: 190 kg | |
*Marked Atex Motor | |
*Free Standing Unit c/w 4 Lifting Lugs |
