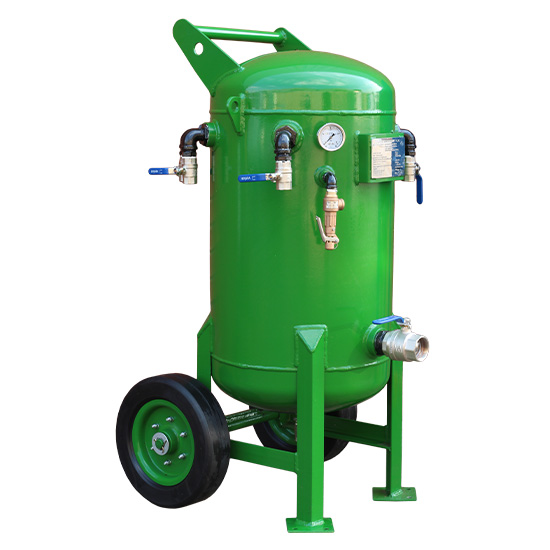

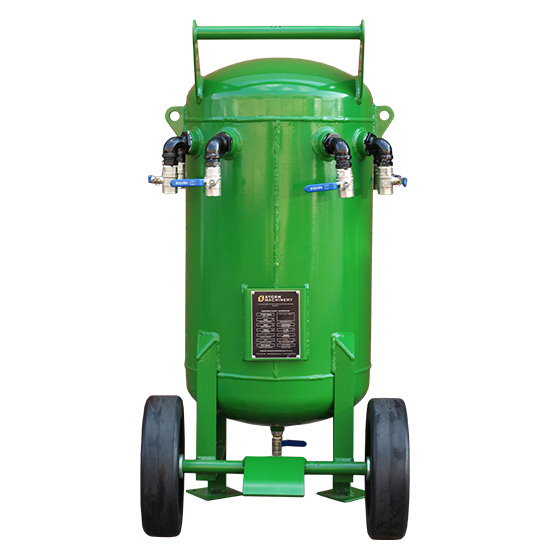

150L Manifold – Air Distribution Point

Running multiple pieces of air-powered equipment off a single compressor shouldn’t mean uneven pressure, dropped performance, or compliance guesswork. Our 150L manifold solves exactly that. Built and tested in accordance with SANS 347 pressure vessel standards, it takes a single 50mm compressor feed and distributes it evenly across six 25mm outlets -giving every connected tool or workstation consistent, equalized air pressure. No more first-in-line advantage, no more pressure-starving your furthest connection.

BUILT FOR THE REAL WORLD OF A BUSY FLOOR

Mounted on wheels with a drawbar, the unit moves where the work is – no need to plan your layout around a fixed installation point. Standard lifting lugs make positioning and transport straightforward on site. At 1320mm high and 500mm in diameter, it holds a solid footprint without eating excessive floor space. A bottom-mounted drain valve makes condensate removal quick and simple as part of routine maintenance.

Standard Safety and Control Features

• Certified safety blow-off valve – protects the system and your team from over-pressurization
• Certified pressure gauge – clear, at-a-glance pressure reading at all times
• Bottom drain valve
• Manufactured and tested in accordance with SANS 347, South Africa’s pressure vessel standard – audit-ready compliance from day one
• Rated to 850 kPa operating and design pressure, classified Hazard Category 3
• Please note: Connection couplers are not included and should be ordered separately to match your existing fittings.

Why It Matters on the Floor

• One compressor reliably feeds up to six tools, lines, or workstations simultaneously
• Equalized distribution keeps tool performance consistent across every outlet
• Mobile design means it goes where the job goes
• Built-in safety relief reduces risk of over-pressure incidents
• SANS 347 compliant – compliance-ready for regulated industrial environments

Sizes & Specifications
